General Specifications
Frequency Response -3 dB from 70 Hz to 45 kHz ±0.5 dB from 75 Hz to 18 kHz ±1.0 dB from 72 Hz to 20 kHz
Height 24.2" (61.5 cm)
Width 12" (30.5 cm)
Depth 5.4" (13.7 cm)
Weight 32 lb (14.5 kg) / Shipping weight 38 lb (17.2 kg)
Crossover Frequencies Three-way, high-order acoustic response @ 400 Hz and 2.3 kHz
Finishes Piano black or mahogany finish
High Frequency Driver Components 1" (2.5 cm) beryllium tweeter
Nominal Impedance 6 ohms (nominal) 3.4 ohms (minimum)
Low Frequency Extension -10 dB at 48 Hz -6 dB at 60 Hz -3 dB at 70 Hz
Low Frequency Driver Components 8" (20 cm) titanium cone woofer
Mid-frequency Driver Components 4" (10 cm) titanium cone midrange
Sensitivity 86.4 dB SPL with 2.83 V @ 1m (4 pi anechoic)
Optional Accessories Optional Tabletop Stand for Gem2 Adds 1.6" (4.1 cm) to Gem2 height • Optional Floor Pedestal for Gem2 Adds 46" (117 cm) to Gem2 height • Piano black finish only

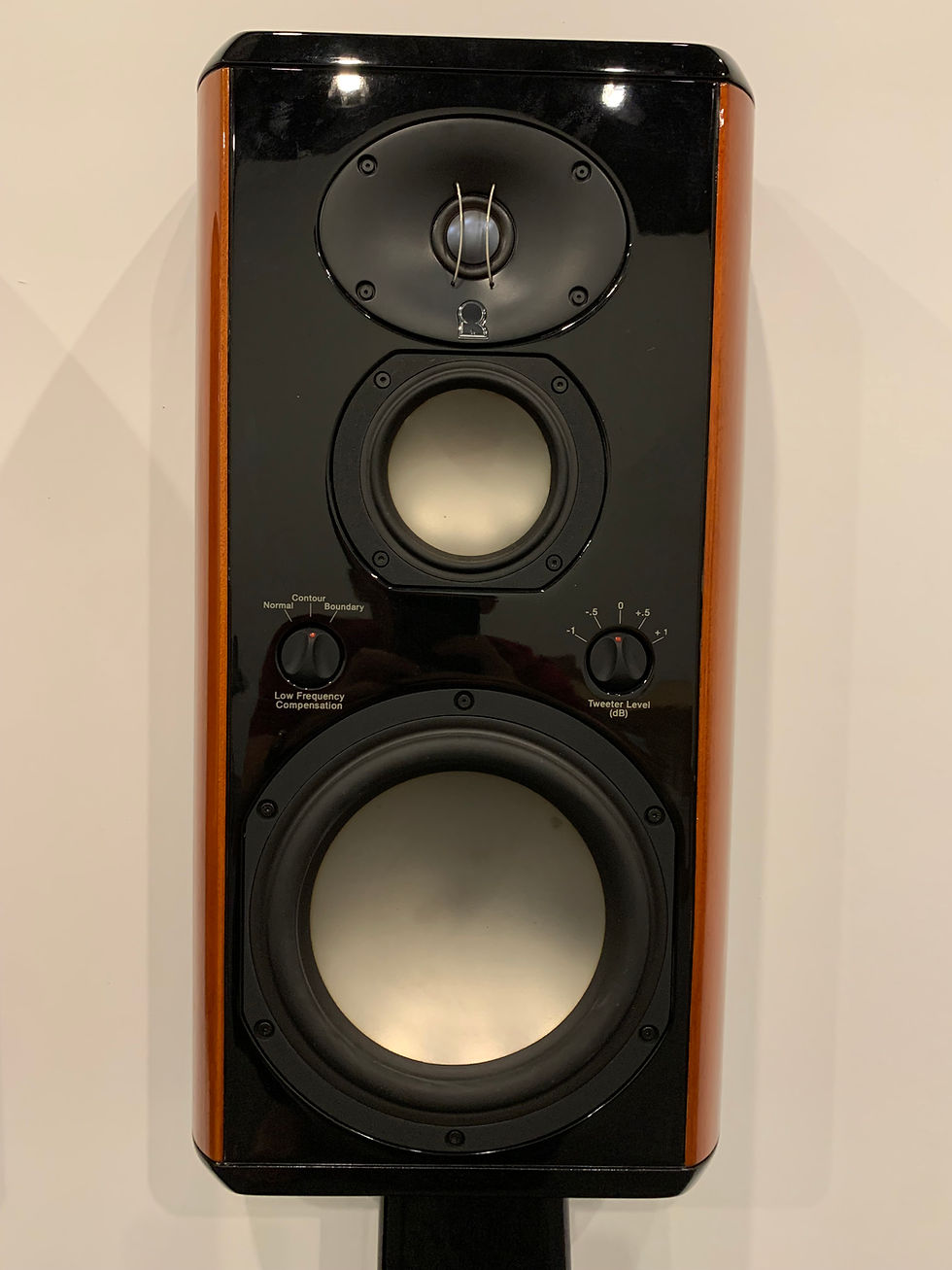

Revel Ultima2 Gem2 (demo, condition 9/10, stands included)

Frequency Response	-3 dB from 70 Hz to 45 kHz ±0.5 dB from 75 Hz to 18 kHz ±1.0 dB from 72 Hz to 20 kHz
Height	24.2" (61.5 cm)
Width	12" (30.5 cm)
Depth	5.4" (13.7 cm)
Weight	32 lb (14.5 kg) / Shipping weight 38 lb (17.2 kg)
Crossover Frequencies	Three-way, high-order acoustic response @ 400 Hz and 2.3 kHz
Finishes	Piano black or mahogany finish
High Frequency Driver Components	1" (2.5 cm) beryllium tweeter
Nominal Impedance	6 ohms (nominal) 3.4 ohms (minimum)
Low Frequency Extension	-10 dB at 48 Hz -6 dB at 60 Hz -3 dB at 70 Hz
Low Frequency Driver Components	8" (20 cm) titanium cone woofer
Mid-frequency Driver Components	4" (10 cm) titanium cone midrange
Sensitivity	86.4 dB SPL with 2.83 V @ 1m (4 pi anechoic)
Optional Accessories	Optional Tabletop Stand for Gem2 Adds 1.6" (4.1 cm) to Gem2 height • Optional Floor Pedestal for Gem2 Adds 46" (117 cm) to Gem2 height • Piano black finish only
